B13雙主軸走心式數控車床

Release time：2023/3/23 Hits：753

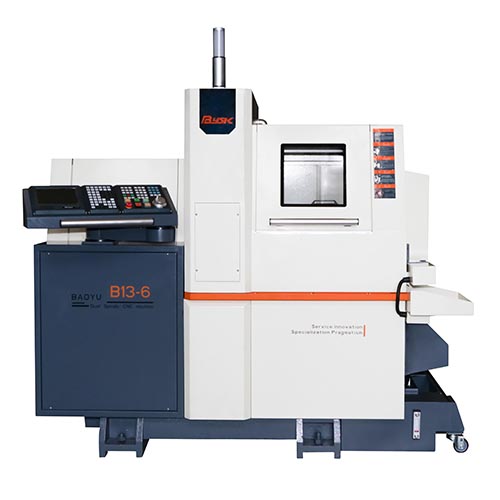

Product model：B13

Detailed introduction

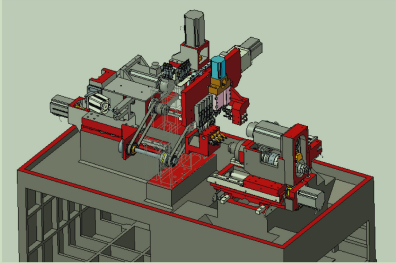

B13 dual-spindle CNC lathe features turning and milling composite processing capabilities, this high-precision, versatile, and highly practical machining equipment is suitable for large-scale, multi-variant, and high-precision processing tasks involving elongated parts with significant length-to-diameter ratios, as well as small and irregularly shaped components. The machine's wide processing range makes it ideal for various industries, such as medical, automotive, motorcycle, telecommunications, refrigeration, optics, home appliances, microelectronics, electronics, timepieces, mobile phones, and more. It is designed for the composite processing of high-precision, large-quantity, and complex-shaped shaft components, along with intricate and small precision parts.

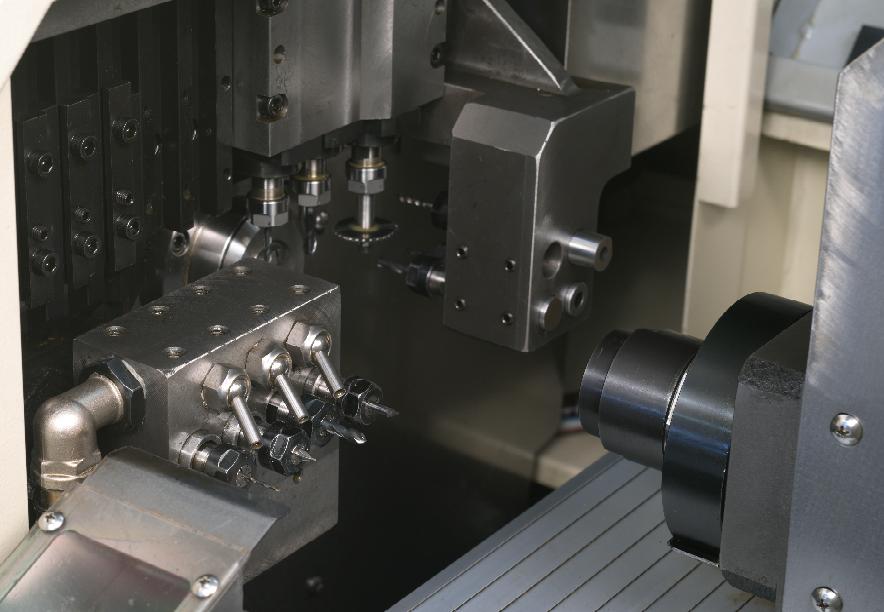

●Employing the sub-spindle and rear tool post, the CNC machine enables simultaneous front and back machining operations.

●Equipped with a 3-axis transverse power head, transverse rigid tapping, front-facing rigid tapping, and rear-facing rigid tapping.

●By adjusting the chuck using the clamping force of the main spindle and sub-spindle, it is easy to grip delicate and precise components.

●With high-speed angular cooling, this machine provides more uniform heat dissipation and improved performance compared to conventional air cooling. It employs an absolute positioning system, eliminating the need to return to the origin when switching on or off, saving time, effort, and labor. The machine operates with high efficiency and minimal manual labor for 24 hours without requiring power reset.

●Using a fixed guide bushing and linked guide bushing results in better efficiency and makes it highly suitable for high-precision machining.

Performance parameter

機床參數
電源	電源額定電壓	三相交流380V	行程	X2軸行程	380mm（直徑量）
	電源額定頻率	50HZ		Z2軸行程	160mm
	總輸入功率	10kW		X2軸伺服馬達功率	1kW
數控系統	寶元	T6850		Z2軸伺服馬達功率	1kW
	最小設定單位	0.001mm	冷卻系統	切削油用電機功率	0.48kW
	X軸脈沖當量	0.0005mm	冷卻系統	冷卻箱容量	150L
	Z軸脈沖當量	0.001mm	潤滑系統	馬達功率	25W
	切削速度	1-4000mm/min	潤滑系統	容量	1.5L
	X軸快速進給速度	15000mm/min	主軸刀具	10*10方刀+∮16孔刀	5把+4把
	Y軸快速進給速度	15000mm/min	副軸刀具	∮16孔刀	4把

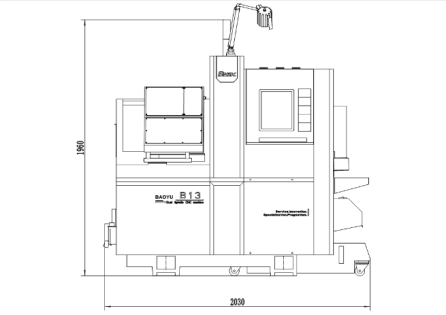

	Z軸快速進給速度	15000mm/min	機床尺寸	長寬高	203013601960
主軸	最大棒料直徑	Φ13mm		機床重量	1700KG
	主軸通孔直徑	Φ14mm	可選配置
	主軸中心離地面高度	1010mm	可選配置
	主軸轉速	0-5000r/min	主軸加側面動力頭	夾頭ER11	3把
	主軸馬達功率	2kW		功率	0.4kW
副軸	最大夾緊直徑	Φ13mm		轉速	4000r/min
	副軸轉速	0-5000r/min	旋轉中心架	加旋轉中心架后Z軸行程	100mm
	副軸馬達功率	2kW	旋轉中心架	加旋轉中心架后Z軸行程	100mm
行程	X1軸行程	60mm（直徑量）
	Y1軸行程	230mm
	Z1軸行程	150mm
	X1軸伺服馬達功率	0.75kW
	Y1軸伺服馬達功率	1kW
	Z1軸伺服馬達功率	1kW
	滑軌形式	直線導軌

Product configuration

機床配置
名稱	型號/規格	廠家
系統	寶元	中國臺灣
主軸	國產	自制
X1軸電機	0.75kW絕對值伺服電機	匯川+總線
Y1軸電機	1kW絕對值伺服電機	匯川+總線
Z1軸電機	1kW絕對值伺服電機	匯川+總線
X2軸電機	1kW絕對值伺服電機	匯川+總線
Z2軸電機	1kW絕對值伺服電機	匯川+總線
絲桿		上銀/銀泰
導軌		上銀/銀泰
