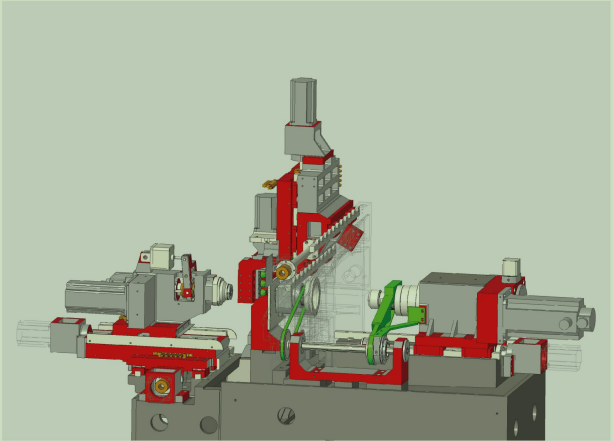

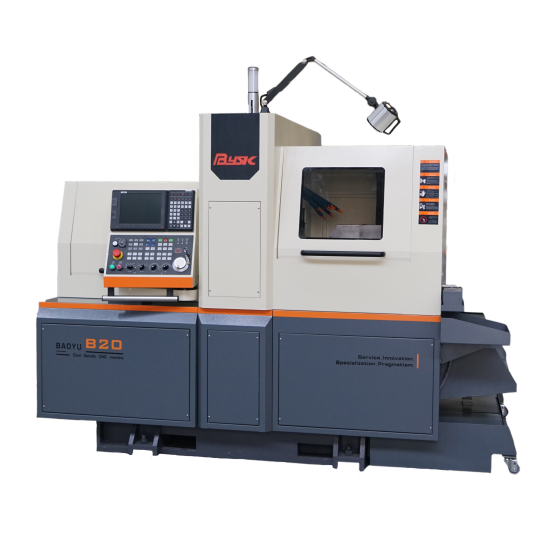

The B20 dual-spindle CNC lathe features four-axis synchronized control, delivering high stability, precision, and easy operation. Based on the requirements of the workpiece, an optional side power head can be added for automated drilling and milling operations. The stable structural design features a high-quality cast iron bed with strong rigidity. By integrating an automatic feeding mechanism, continuous automated processing is achieved.

●The main and auxiliary spindles come standard with a C-axis for arbitrary indexing and positioning.

●The main spindle utilizes imported ultra-high precision angular contact ball bearings, guaranteeing superior rigidity and enduring precision. The machine incorporates imported high-precision ball screw bearings and is equipped with high-precision linear guides from German Rexroth.

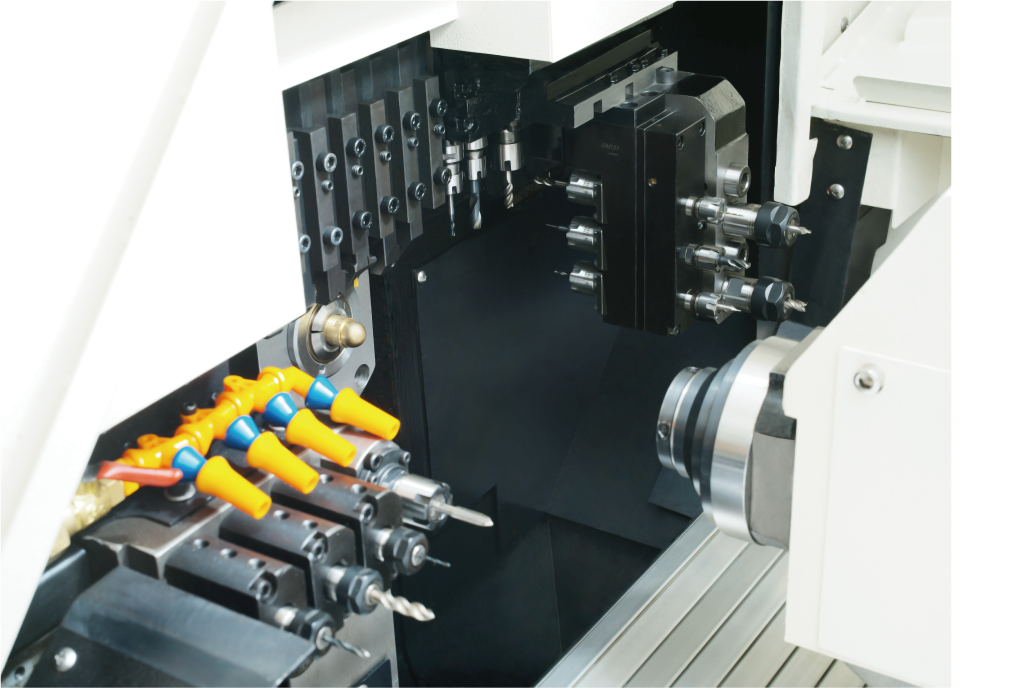

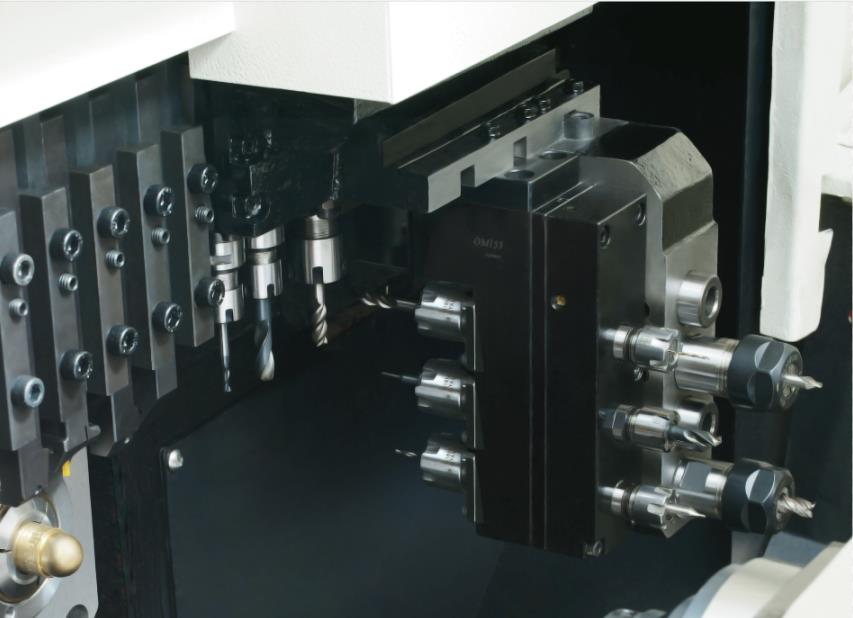

●The tool turret structure incorporates a stepped guide rail design, increasing the rigidity of the tool holder platform while promoting efficient chip evacuation. With side milling power tools and spindle indexing capabilities, the CNC machine is equipped to handle the requirements of intricate turning, milling, and drilling combined operations.

●The guide bushing structure provides versatile cutting options, such as fixed guide bushing cutting, full-stroke cutting without a guide bushing, and rotary guide bushing cutting, accommodating a diverse array of machining demands.
