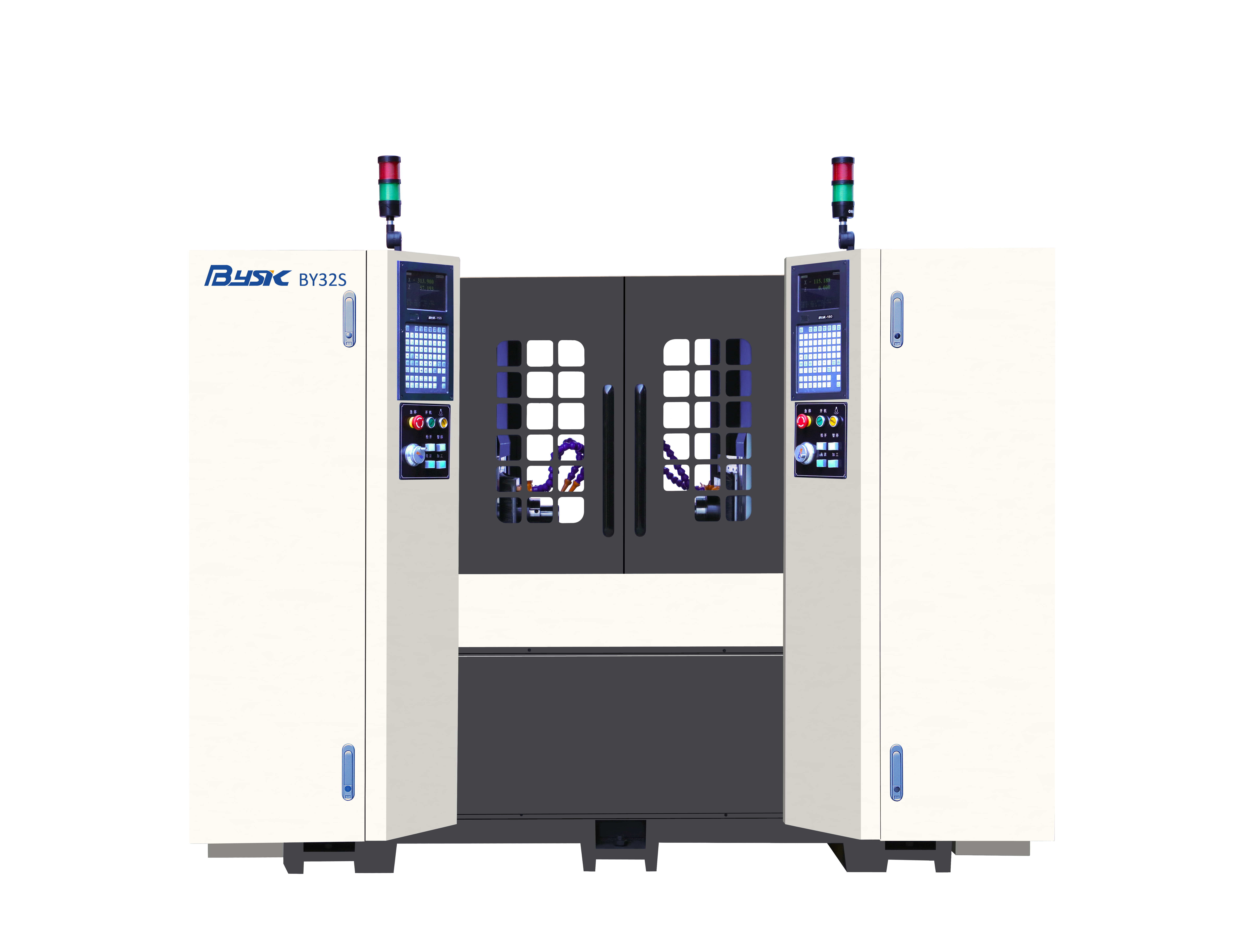

BY32S 雙主軸移動式數控排刀車床

Release time：2020/8/19 Hits：1280

Product model：BY32S

Detailed introduction

機床型號					BY32S
機床參數
電源	電源額定電壓	三相交流380V	排刀系統	T型槽排刀式
	電源額定頻率	50HZ
	總輸入功率	10.8kw
數控系統	BYSK	YZ150
	最小設定單位	0.001mm
	X軸脈沖當量	0.0005mm	冷卻系統	切削油用電機功率	0.12kw
			冷卻系統	冷卻箱容量	150L
	Z軸脈沖當量	0.001mm	潤滑系統	馬達功率	25w
	最大編程尺寸	±9999.999	潤滑系統	容量	2L
	切削速度	1--4000mm/min
	X軸快速進給速度	20000mm/min	液壓系統	液壓馬達功率	0.75kw
			液壓系統	油壓壓力	3.0Mpa
	Z軸快速進給速度	20000mm/min	機床尺寸	長寬高	228019701900
主軸	最大棒料直徑	Φ32mm	機床尺寸	機床重量
	主軸通孔直徑	Φ33mm	可選配置
	最大旋轉直徑	Φ130mm	可選配置
	主軸中心離地面高度	942mm
	主軸轉速	0-4000r/min
	主軸馬達功率	2.2kw/3.7kw
行程	X軸行程	700mm（直徑量）

	Z軸行程	200mm
	X軸伺服馬達功率	1.3kw

	Z軸伺服馬達功率	1.3kw
	滑軌形式	直線導軌

Performance parameter

BY32S雙主軸移動式數控排刀車床參數：

機床配置
名稱	型號/規格	廠家
系統	BYSK180系統	自制
主軸	32主軸單元	自制
X軸電機	1.3kw絕對值伺服電機	匯川+總線
Z軸電機	1.3kw絕對值伺服電機	匯川+總線
X軸絲桿	500*3210	躍爾
Z軸絲桿	690*3210	躍爾
X軸導軌	HGW30	中國臺灣品牌
Z軸導軌	HGH30	中國臺灣品牌
主軸電機	4kw伺服主軸電機	阿爾法

Product configuration

The BY32S dual-spindle mobile CNC gang tool lathe features a structure where two main spindles are arranged in parallel and opposite to each other, with the gang tool post fixed in the middle of the machine. Both spindles can independently execute programs for X-axis and Z-axis movement, enabling automatic exchange of workpieces between the main spindle and the sub-spindle. This resolves the machining problem of performing two operations on the clamping end of the workpiece in a single setup.

The machine offers several advantages, including fast tool change, high positioning accuracy, high production efficiency, labor savings, and a high cost-performance ratio. Additionally, various forms of automated loading and unloading mechanisms, such as vibrating plates, can be integrated into the machine to achieve unmanned automatic processing. The machine combines two functions into one, saving on floor space.

The BY32S dual-spindle mobile CNC gang tool lathe features a unique design with dual spindles and dual systems

1. Combining two independent lathes into one, and utilizing two sets of CNC systems, it can operate independently or work together to complete the other half of the machining process.
2. This is equivalent to operating two lathes, but it offers the added benefits of saving floor space, reducing the number of operators, and minimizing material handling and setup time.

3. By integrating various automated loading and unloading mechanisms, such as vibrating plates, it achieves unmanned automatic processing.
4. A servomotor with an absolute encoder prevents errors caused by power outages.

Sample display
