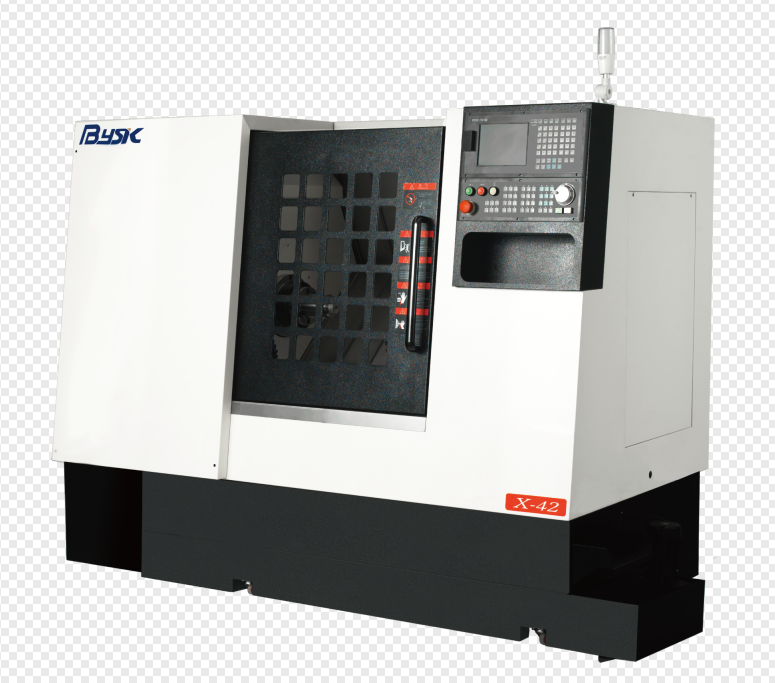

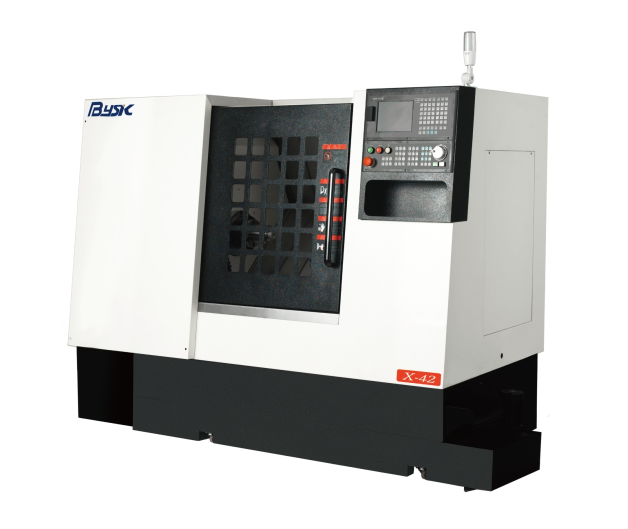

X42 斜床身數控車床
Release time:2023/3/23     Hits:692
Product model:X42
  • 10
  • 9
  • 7
Detailed introduction

The X42 slant bed CNC lathe boasts efficient chip removal, comprehensive functionality, outstanding performance, high rigidity, excellent efficiency, and remarkable precision. Primarily used in the automotive parts, plumbing valves, and mold industries, it is also ideal for mass production of complex, varied-size, high-precision shafts and disc components. The lathe can automatically complete turning operations for internal and external diameters, grooves, tapers, spherical surfaces, and various metric and imperial threads. Castings made of resin sand undergo aging treatment, ensuring improved stability, high strength, and consistent precision.

The bed base is made of high-quality resin sand casting and undergoes strict aging treatment, providing optimal rigidity, excellent vibration damping, and robustness, which ensure machine stability.

The lathe features a rational layout with a spacious interior and a stylish exterior design.

The high-precision collet-type independent spindle structure allows for high-speed operation.

The fast hydraulic turret system ensures quick tool changes and improved efficiency.

Absolute value servo motors prevent errors caused by power outages.

The X42 is perfect for mass-producing complex, varied-size, high-precision shafts and disc components, as it can automatically complete turning operations for internal and external diameters, grooves, tapers, spherical surfaces, and various metric and imperial threads.

Performance parameter

機床參數

電源

電源額定電壓

三相交流380V

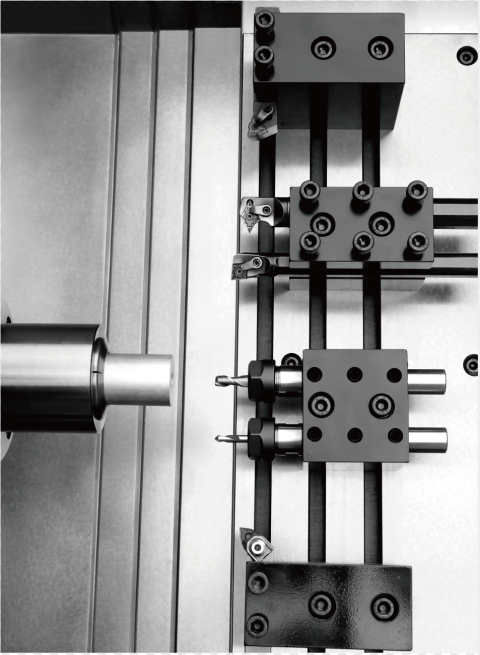

排刀系統

T型槽排刀式

6把

電源額定頻率

50HZ

20*20方刀

4把

總輸入功率

9kW

Φ20孔刀

2把

數控系統

BYSK

YZ180





最小設定單位

0.001mm





X軸脈沖當量

0.0005mm

冷卻系統

切削油用電機功率

0.18kW





冷卻箱容量

150L

Z軸脈沖當量

0.001mm

潤滑系統

馬達功率

25W

最大編程尺寸

±9999.999

容量

2L

切削速度

1--4000mm/min







X軸快速進給速度

20000mm/min

液壓系統

液壓馬達功率

0.75kW





油壓壓力

3.0Mpa

Z軸快速進給速度

20000mm/min

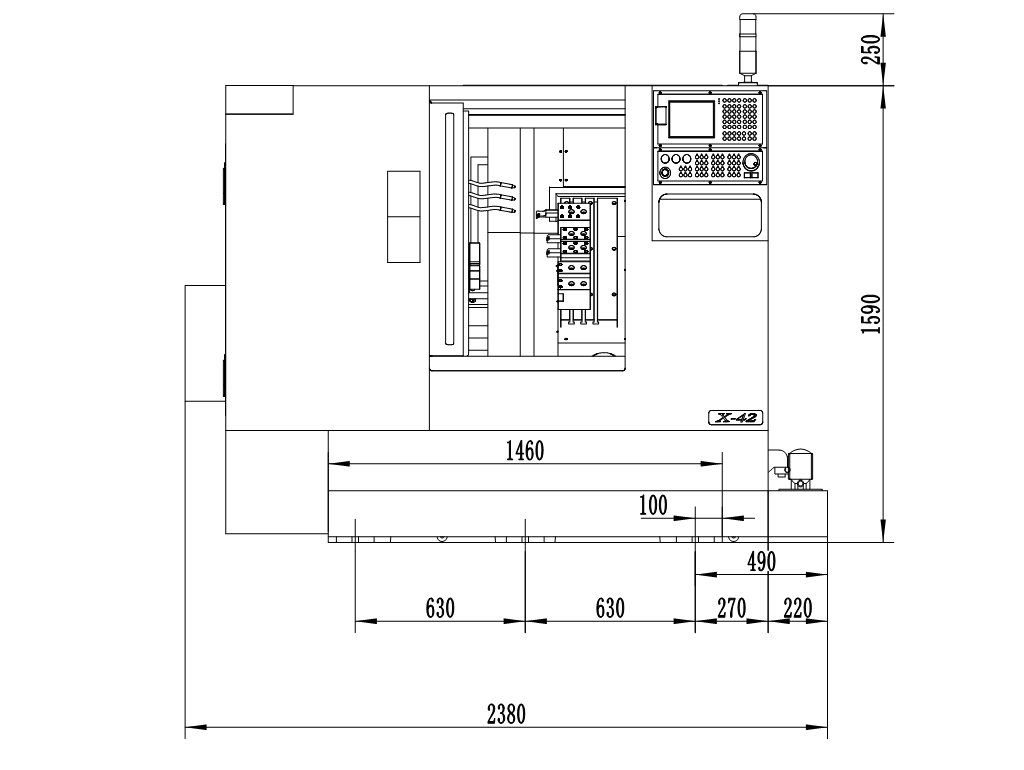

機床尺寸

*寬*高

2380*1555*1840

主軸

最大棒料直徑

Φ42mm

機床重量

2100kg

主軸通孔直徑

Φ43mm

可選配置

最大旋轉直徑

Φ400mm

主軸中心離地面高度

950mm







主軸轉速

0-3000r/min







主軸馬達功率

5.5kW







行程

X軸行程

800mm(直徑量)

















Z軸行程

300mm







X軸伺服馬達功率

1.3kW

















Z軸伺服馬達功率

1.3kW







滑軌形式

直線導軌







Product configuration

機床配置

名稱

型號/規格

廠家

系統

BYSK180系統

自制

主軸

42主軸單元

自制

主軸電機

5.5kW伺服電機

阿爾法







X軸電機

1.3kW絕對值伺服電機

匯川+總線

Z軸電機

1.3kW絕對值伺服電機

匯川+總線

X軸絲桿

665*3210

躍爾

Z軸絲桿

690*3210

躍爾

X軸導軌

HGW30

上銀/銀泰

Z軸導軌

HGH35

上銀/銀泰



















Sample display
